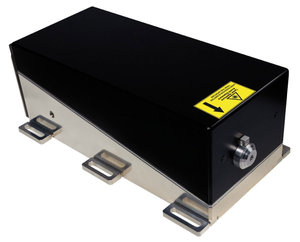

CW Blue Laser

		488 nm output wavelength
		Highest Efficiency: ≥ 5 % (output-/pump power)
		Low noise: < 0.3 % rms
		High beam quality (M²<1.1)
		CW laser operation
		Single Frequency: intrinsic feature of optical layout, no mode hops
		Scalable Design
		Cost effective

Diffraction limited TEM₀₀ optical performance combined with extremely low optical noise and good beam pointing stability at 488 nm are the main advantages of Blue-Note series. Built on the same platform as its colleague Concerto, Blue-Note outputs 25, 50 and 100 mW giving low noise options for more power requiring applications such as wide field confocal microscopy and large area imaging.

Key applications:

In principle 488 nm is the main wavelength for bio-fluorescence applications, to name few: flow cytometry, confocal microscopy and high throughput screening.

Model	BlueNote-488
Output wavelength	488 nm ±0.5 nm
Rated output power (CW)	100 mW
Output beam diameter	0.7 mm (±0.2)
Transverse mode structure	TEM₀₀, M² <1.1
Longitudinal mode structure	SLM (Single frequency)
Divergence	Diffraction limited
Beam pointing stability	≤ 10 µrad/°C
Spectral linewidth	< 1 MHz
Coherence length	> 100 m
Polarization	Vertical
Polarizarion ratio	≥ 100:1
Output power noise (p-p)	≤ 2% (10 Hz - 2 MHz)
Output power noise (rms)	≤ 0.3% (10 Hz - 2 MHz)
Output power stability	≤ 2% (4 hours)
Thermal management	TEC conductively cooled. Recommend mounting on metal heat sink plate min
Operating temperatures	15-35 °C
Laser Head Dimensions (LxWxH)	252.5 x 109 x 98 mm
Controller Dimensions (LxWxH)	164 x 109 x 54 mm
Power adapter	Standard AC/DC converter, 12VDC, 140W max with Mini-DIN 4 power connector

OEM Manufacturing services. Standa provides contract manufacturing services for application - specific Lasers. Please call your local Standa distributors or Standa office for more information.
