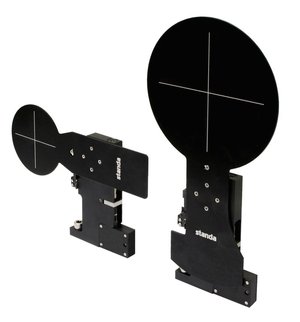

Laser Beam Shutters are designed in a very thin way thus enabling usage in extremely dense optical assemblies and narrow spaces. Our shutters are equipped with DC motors. Shutters are used to block laser beam and prevent equipment or eyes from taking damage due to unpredicted circumstances or laser malfunction. For instance, laboratory doors can be connected a series of shutters that will block the laser beam once doors are opened.

Specifications
Turning angle			90°
Turning time			1sec.
Cable			1,6 m length
Motor connector			DB9(M)
DC Motor size			Ø10mm
Gear			4:1
Power			12V, 0,176A
Limit switches			2pc mechanical
